How to Use the RudderStack Control Plane Lite

Step-by-step guide to set up your self-hosted Control Plane using RudderStack's Control Plane Lite utility.

RudderStack's Control Plane manages the configuration of your sources and destinations.

For more information on the Control Plane, refer to RudderStack's architecture.

The easiest way to manage these configurations is through RudderStack's self-hosted web app. It is free, requires no setup, and has some advanced features like Live Events and Transformations.

However, if you don't wish to sign up for RudderStack and want to self-host these configurations instead, you can use the open-source Control Plane Lite to set up your own Control Plane. You can then manage the source and destination configurations locally by exporting to or importing from a JSON file.

Setting Up the Control Plane

To set up your self-hosted Control Plane using the Control Plane Lite utility, follow these steps:

Make sure you have Node.js installed before setting up your self-hosted Control Plane.

Clone the RudderStack Control Plane Lite repository.
Next, open your terminal, navigate to the Config Generator folder, and run the following commands:
- npm install
- npm start
Upon successful setup, you can access the dashboard at http://localhost:3000 by default.

Exporting Workspace Configuration

After adding the required sources and destinations in the dashboard, you can export your workspace configuration by simply clicking the EXPORT button. The configuration is then exported and saved as a JSON file. This workspace configuration is required to start the RudderStack server.

For more information on adding sources and destinations in RudderStack, refer to the How to Add a Source and Destination in RudderStack guide.

Starting RudderStack With the Workspace Configuration File

For RudderStack to pick up the exported workspace configuration file, follow the steps for your preferred RudderStack setup.

Docker

If you want to set up RudderStack on Docker, follow these steps:

Download and open rudder-docker.yml.
In the environment section under backend service, uncomment the following lines:

- RSERVER_BACKEND_CONFIG_CONFIG_FROM_FILE=true- RSERVER_BACKEND_CONFIG_CONFIG_JSONPATH=<workspace_config_filepath_in_container>

Then, replace <workspace_config_filepath_in_container> in the line above with your preferred container file path. By default, you can set it to /etc/rudderstack/workspaceConfig.json.
In the volumes section under the backend service, uncomment the following line:

- <absolute_path_to_workspace_config>:<workspace_config_filepath_in_container>

Then, replace <absolute_path_to_workspace_config> with the local path of your workspaceConfig.json(where your workspace configuration file is saved locally). Also, replace <workspace_config_filepath_in_container> with the container file path that you set above.

Value for <workspace_config_filepath_in_container>should be the same as the value provided for the RSERVER_BACKEND_CONFIG_CONFIG_JSONPATH variable. Otherwise, your workspace configuration won't be loaded and you will get an error.

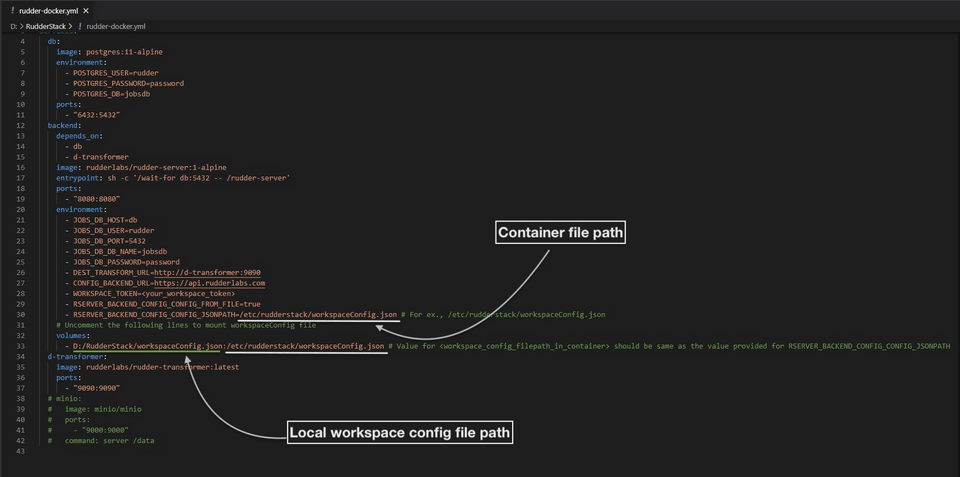

Your rudder-docker.yml should look like the following:

Finally, navigate to the directory where you want to install RudderStack and run the following command:
```
docker-compose -f rudder-docker.yml up
```
Once you have successfully followed the steps above, send test events to verify the installation.

Kubernetes

Clone the repository containing the RudderStack Helm chart by running the following command:
```
$ git clone git@github.com:rudderlabs/rudderstack-helm.git
```
Navigate to the folder containing the Helm chart.
```
$ cd rudderstack-helm/
```
Open the values.yaml file.
Set the parameter controlPlaneJSON to true.
Export the workspace configuration from the dashboard by following the steps in the Exporting Workspace Configuration section above.
Finally, run the following command:

$ helm install my-release ./ --set backend.controlPlaneJSON=true

Refer to the Configuration section for information on the parameters that can be configured during deployment.

Once you have completed these steps above successfully, send test events to verify the installation.

Developer Machine Setup

First, set up the database in your preferred directory using the following commands:

createdb jobsdbcreateuser --superuser rudderpsql "jobsdb" -c "alter user rudder with encrypted password 'rudder'";psql "jobsdb" -c "grant all privileges on database jobsdb to rudder";

Next, clone the RudderStack server repository.
Then, run git submodule init and git submodule update to fetch the rudder-transformer repository.
Next, navigate to the Transformer directory using the following command:

cd rudder-transformer

Install dependencies using the command npm i . Then, start the destination transformer using the following command:

node destTransformer.js

Navigate back to the main directory using the command cd rudder-server.
Next, copy the sample.env to the main directory using the following command:

cp config/sample.env .env

Then, go to the config folder and open config.yaml.
Under [BackendConfig], look for configFromFile and set it to true.
Also, change the value of configJSONPath to the local path of your workspaceConfig.json(where your workspace configuration file is saved locally), as shown:

Finally, run the RudderStack server using the following command:
```
go run -mod=vendor main.go
```
Once you have completed these steps above successfully, send test events to verify the installation.

Using Hosted Control Plane for Device Mode Destinations

To know more about the difference between Cloud mode and Device mode in RudderStack, read the RudderStack connection modes guide.

RudderStack's web, Android and iOS SDKs expect the source configurations and the associated device mode destination configurations for initialization. If you are self-hosting the Control Plane, you will need to host these configurations on your own server such that the source configuration is available at <CONTROL_PLANE_URL>/sourceConfig.

For RudderStack Cloud, the SDKs fetch this source configuration from https://api.rudderlabs.com/sourceConfig.

What is the Control Plane URL?

Since the RudderStack SDKs need the source configuration and RudderStack's Data Plane or the SDKs are not aware of it by default, you must serve the configuration on your web servers and point the SDKs to the same. This configuration must be available at <CONTROL_PLANE_URL>/sourceConfig

To do so, follow these steps:

Set up your Control Plane using the Control Plane Lite utility.
Go to the dashboard, set up your source, and export the source configuration by clicking the EXPORT SOURCE CONFIG button, as shown:

Host the exported file on your own server at /sourceConfig. Provide the base URL of your server that is serving this file in SDK initialization code snippet:
- JavaScript SDK: Instructions here.
- Android SDK: Instructions here.
- iOS SDK: Instructions here.
- Flutter SDK: Instructions here.

RudderStack SDKs fetch the configuration by appending the /sourceConfig path to the base URL provided above.

The SDKs will fetch the config from <CONTROL_PLANE_URL>/sourceConfig.

A sample exported source config is shown below:

{  "source": {    "config": {},    "id": "1im8yfXQsocRBGcQLXAaq5M8dYV",    "name": "test-JS",    "writeKey": "1im8yk2sz8oyHVCGVqViSNfKVDF",    "enabled": true,    "sourceDefinitionId": "1TW48i2bIzEl1HPf825cEznfIM8",    "deleted": false,    "createdAt": "Mon Oct 12 2020 16:51:54 GMT+0530 (India Standard Time)",    "updatedAt": "Mon Oct 12 2020 16:51:54 GMT+0530 (India Standard Time)",    "sourceDefinition": {      "id": "1TW48i2bIzEl1HPf825cEznfIM8",      "name": "Javascript",      "displayName": "Javascript",      "category": null,      "createdAt": "2019-11-12T12:39:19.885Z",      "updatedAt": "2020-06-18T11:54:06.114Z"    },    "destinations": [      {        "id": "1im927dBatOkbj1oPCV5JntGMj7",        "name": "test-HJ",        "enabled": true,        "config": {          "siteID": "dd41289"        },        "destinationDefinition": {          "config": {            "destConfig": {              "web": [                "useNativeSDK"              ],              "defaultConfig": [                "siteID"              ]            },            "secretKeys": [],            "excludeKeys": [],            "includeKeys": [              "siteID"            ],            "supportedSourceTypes": [              "web"            ]          },          "id": "1SxbQXdfQ2NzIdqNO3GceshF4V0",          "name": "HOTJAR",          "displayName": "Hotjar",          "createdAt": "2019-10-31T07:49:37.450Z",          "updatedAt": "2020-09-05T10:02:39.744Z"        }      }    ]  },  "metadata": {    "version": "1.0.2"  }}

FAQs

For a self-hosted environment, how to get the Control Plane URL?

To use the Control Plane URL to initialize your SDKs, follow these steps:

Set up the Control Plane using the Control Plane Lite utility.
Go to dashboard, configure the source, and export the source configuration by clicking the EXPORT SOURCE CONFIG button as shown:

Host the exported file on your own server such that the configuration is available at <CONTROL_PLANE_URL>/sourceConfig.

This solution assumes that you have already set up RudderStack locally and are hosting your own RudderStack backend (Data Plane).

Contact Us

In case you come across any issues while setting up your self-hosted Control Plane using Control Plane Lite, feel free to contact us or start a conversation in our Slack community.
